Disinfection Systems
“NAKED” Freshwater System Model NKD-M (Mini) For Pool Volume 3 – 30 m³
Benefits of Freshwater System
- Say goodbye to red eyes and irritated skin
- Fresh water is the healthier lifestyle choice
- Ideal for asthmatics, psoriasis and eczema sufferers
- Longer lasting equipment and surrounds
- Tastes just like drinking water no offensive chlorine smell, feel or taste
- No need to shower or wash swimwear after use
- Far less maintenance than traditional systems
- Up to 60% savings on running costs
- Lowest levels of TDS – Clear Fresh Water
- Recycle water straight to the garden
- Gentle on the skin
3 Year Warranty
Delivered on 3 - 5 days
Download
Brochure Brochure (spec) Manual (TH) Manual (EN) Manual - Installation & Setup Guide (TH) Manual - Installation & Setup Guide (EN) Manual - Installation & Diagram (Diagram) Spare Part Presentation (EN & TH)Product Details
How freshwater pools work

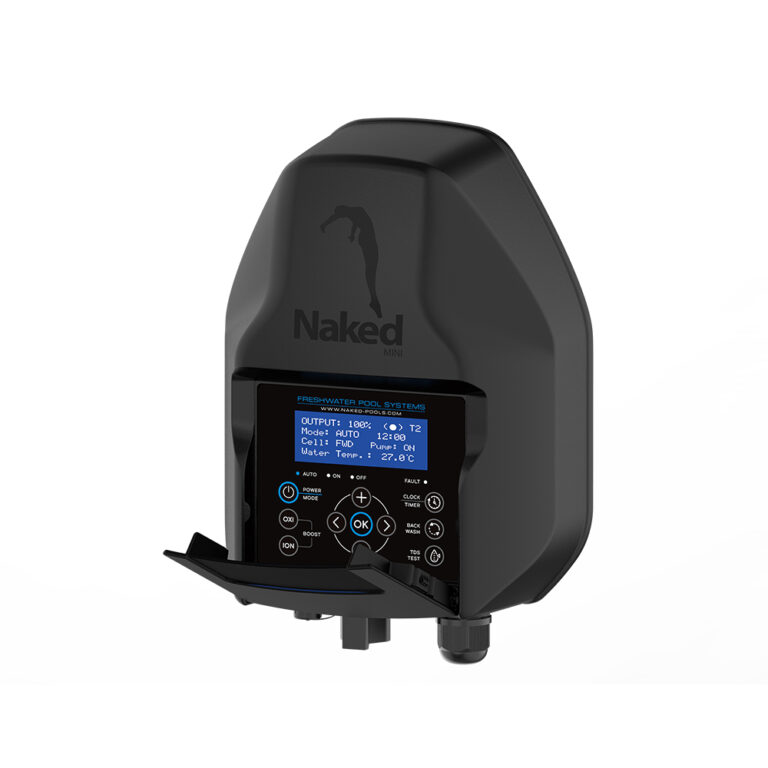

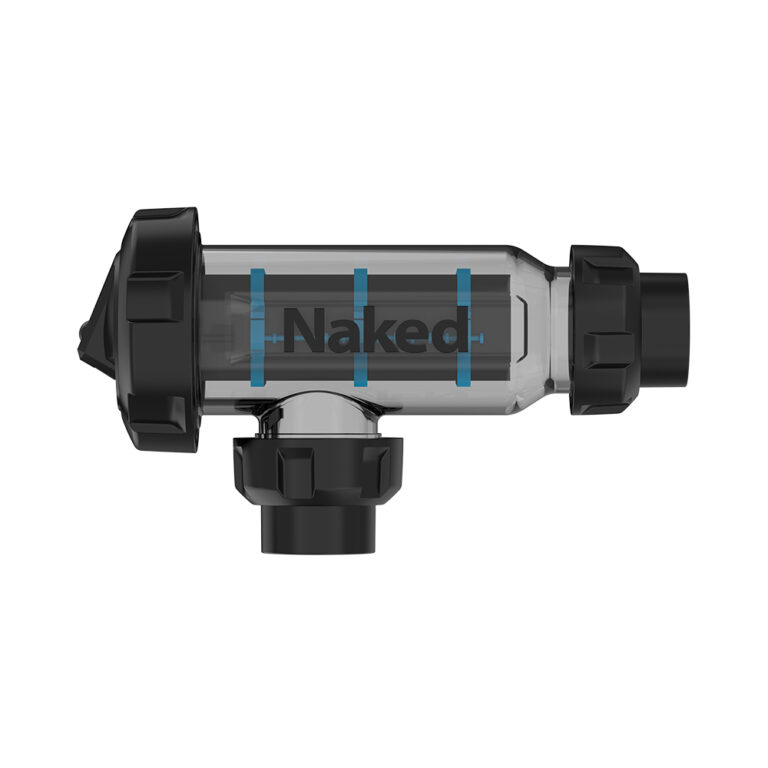

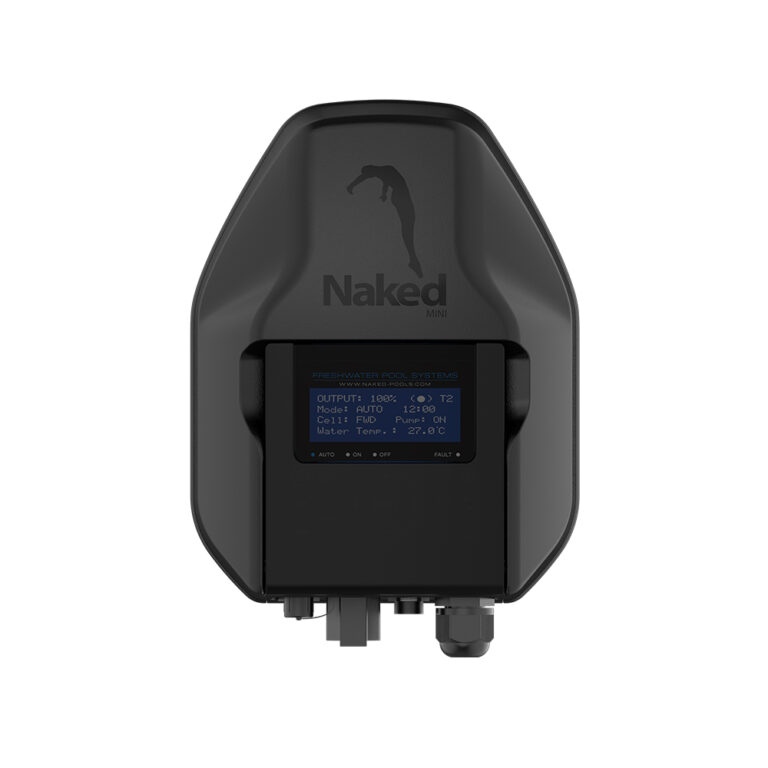

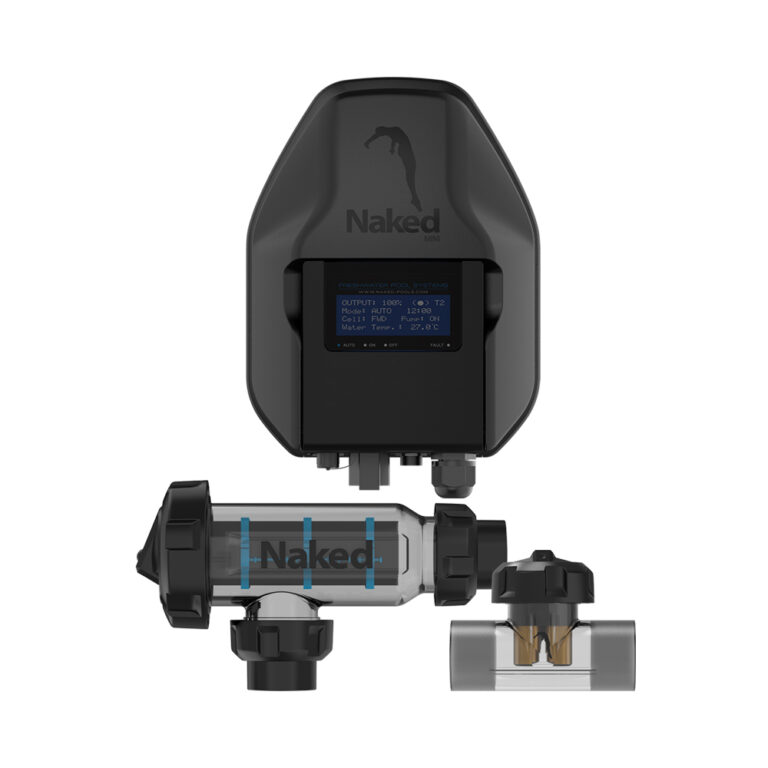

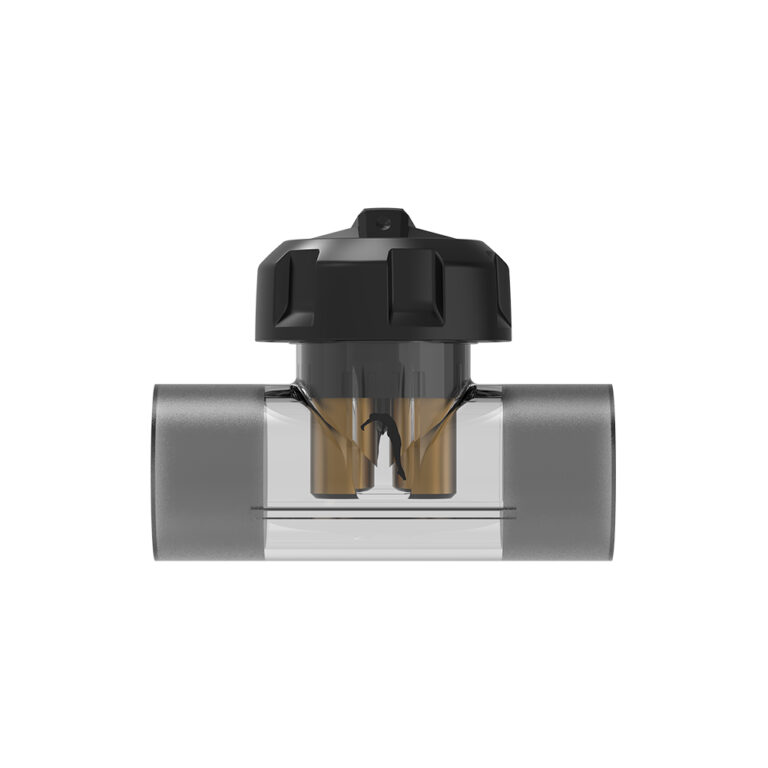

The Naked Hybrid System is made up of a digital control unit which supplies and manages current to the electrode assembly (OXI & ION Cell). Electrolysis passes through the copper and silver anodes, releasing the ions into the water. The silver disinfects the water controlling bacteria and the copper prevents algae growth.
In addition, oxidisation is used as water passes over the titanium plates producing small, untraceable amounts of chlorine ensuring organic matter and other contaminates are eliminated from the water.
The system will work with any type of pool surface including stainless steel and can be retrofitted to existing pools, plunge pools and swim spas.
Benefits of Freshwater System
- Say goodbye to red eyes and irritated skin
- Fresh water is the healthier lifestyle choice
- Ideal for asthmatics, psoriasis and eczema sufferers
- Longer lasting equipment and surrounds
- Tastes just like drinking water no offensive chlorine smell, feel or taste
- No need to shower or wash swimwear after use
- Far less maintenance than traditional systems
- Up to 60% savings on running costs
- Lowest levels of TDS – Clear Fresh Water
- Recycle water straight to the garden
- Gentle on the skin
Specifications
| Volts Input (Vac) | 220 – 265 |
| Amps Input (Aac) | 0.4 |
| Total Power Consumption (W) | 93 |
| OXI Volts Output (Vdc) | 10.3 |
| OXI Amps Output (Adc) | 5 |
| Chlorine (g/hr) | 10 @ 800ppm TDS |
| Frequency (Hz) | 50/60 |
| Pump Outlet Rating (Aac) | 9.4 |
| Control Unit Dimensions (mm) | 204W x 286H x 105D |
| Cell Housing Dimension (mm) | 356L x 145D x 203H |
| Ioniser Housing Dimension (mm) | 158L x 100D x 138H |
| Cell Design | 9 Plate 140 x 60mm |
| Water Connection | 40/50mm |
| Water Flow Rate (L/min) | 80 – 550 |
| IP Rating | 23 |
| Unit Shipping Dimensions (mm) | 460L x 436W x 220H |
| Net Weight (kg) | 9.5 |
